High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch

Basic Information
Place of Origin: Xiamen, China
Brand Name: chongyuan
Certification: SGS
Model Number: PPS
Minimum Order Quantity: 3ton
Price: 1.5 USD/TON
Packaging Details: 25Kg/Bag (paper-plastic package)
Delivery Time: 8-10 workdays
Payment Terms: Western Union, D/P, L/C, T/T
Supply Ability: 5000ton/week
Model NO.: PPS Plastic Properties After Heated: Thermoplastic Plastics
Plastic Forming Method: Injection Molding Color: Back White Blue Red Pink Purple Yellow Green Pink
Processing Methods: Injection Molding, Extrusion Applications: Water Pumps Wheels, Gears, Auto Parts
Filler Content: 40% Glass Fiber
Highlight:

Flame Retarded Plastic Granule

,

High Heat Resistant Plastic Granule

,

PPS+40%GF Plastic Granule

Product Description

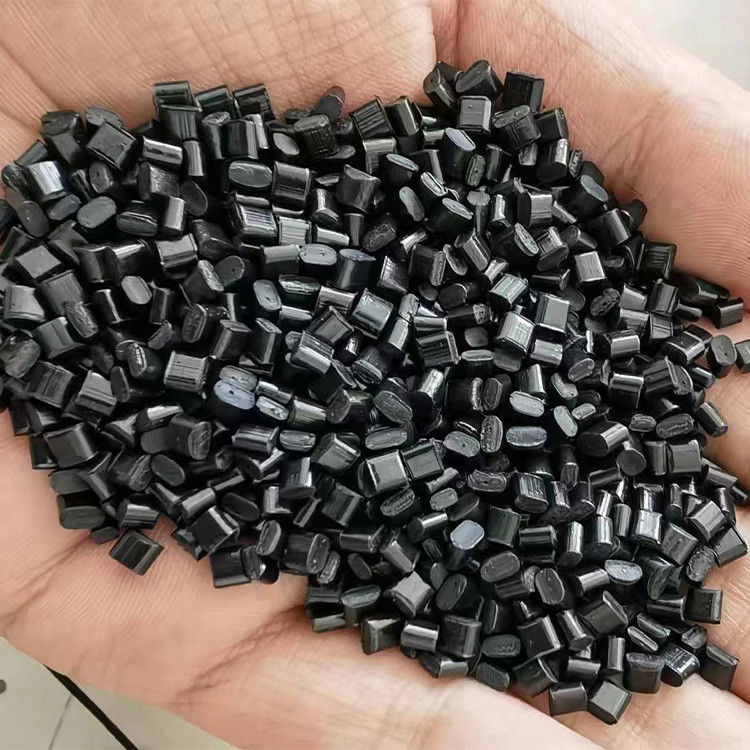

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 0
PPS+40%GF Natural color
Z010-GF40 is the PPS with 40% glass fiber,it have good dimensional stability,high temperature resistance,high rigidity.

PPS is a semi-crystalline polymer with a high crystalline melting point of about 285°C (545°F). Because of its molecular
structure, PPS also tends to char during combustion, making the material inherently flame retardant. PPS has not been found to
dissolve in any solvent at temperatures below about 200°C (392°F).





Specifications





1, Excellent heat resistance, continuous use temperature up to 220-240 ° C, glass fiber reinforced heat distortion temperature
above 260 ° C
2, Good flame retardant and can be UL94-V0 and 5-VA (no dripping) without adding any flame retardant additives.
3, Excellent chemical resistance, only second to PTFE, almost insoluble in any organic solvent
4, PPS resin is highly reinforced by glass fiber or carbon fiber and has high mechanical strength, rigidity and creep resistance.
It can replace part of metal as structural material.
The resin has excellent dimensional stability.
5,Extremly small molding shrinkage rate, and low water absorption rate. It can be used under high temperature or high humidity
conditions.
6, Good fluidity. It can be injection molded into complex and thin-walled parts.



Features

  1. high heat resistant,high strength,high flame retarded
  2. though wave soldering without lead/reflow soldering 285℃
Products Detail

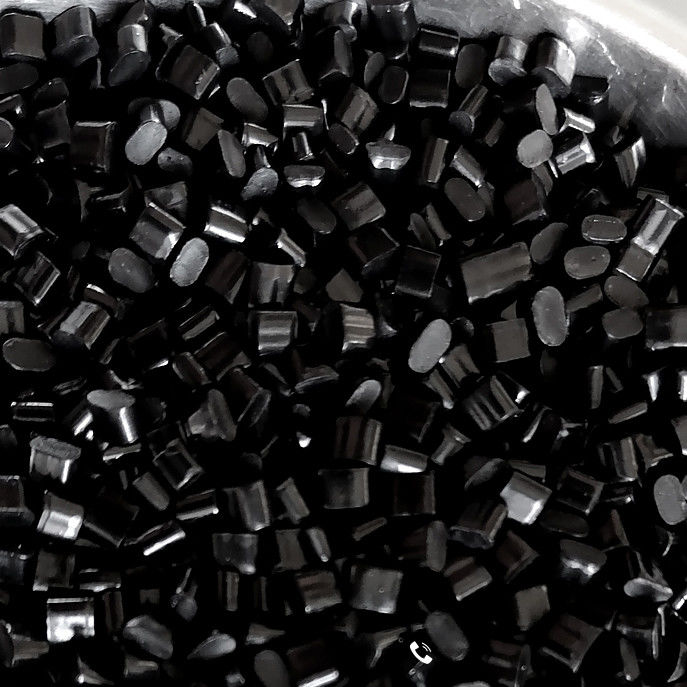

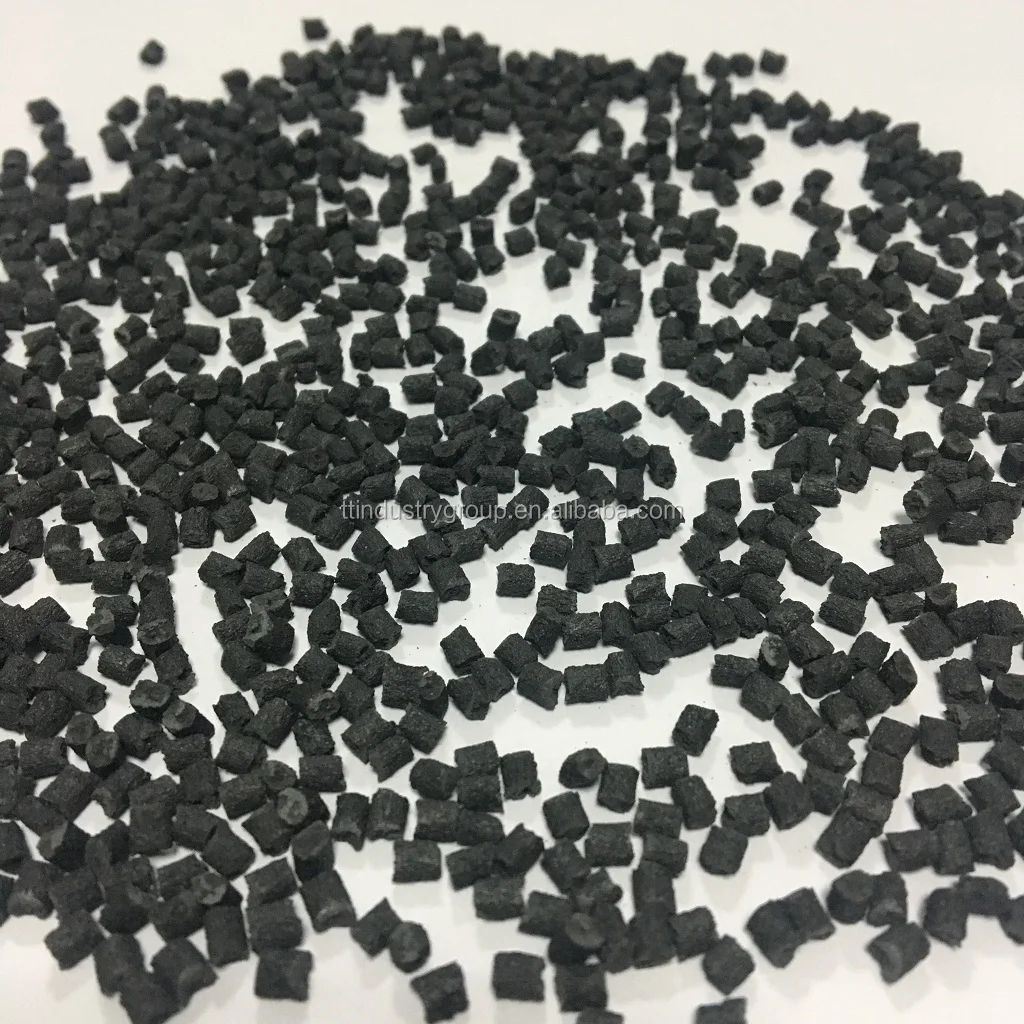

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 1

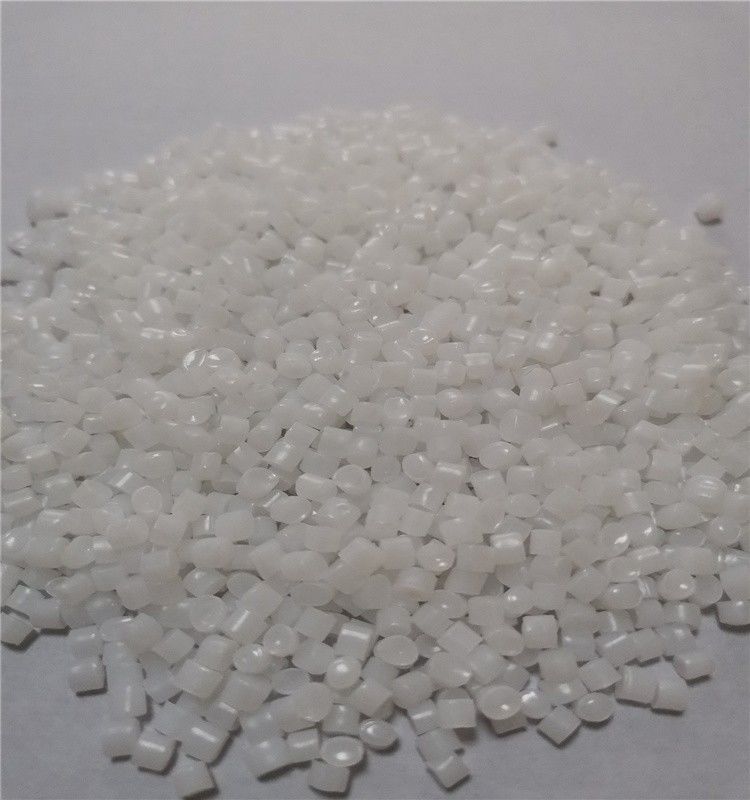

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 2

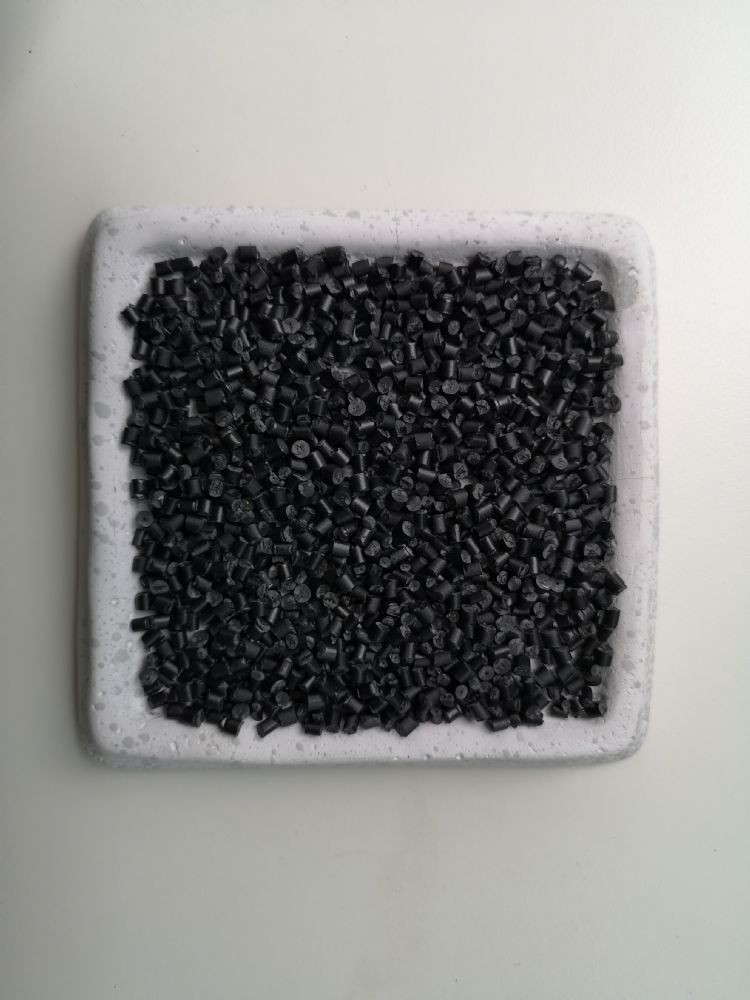

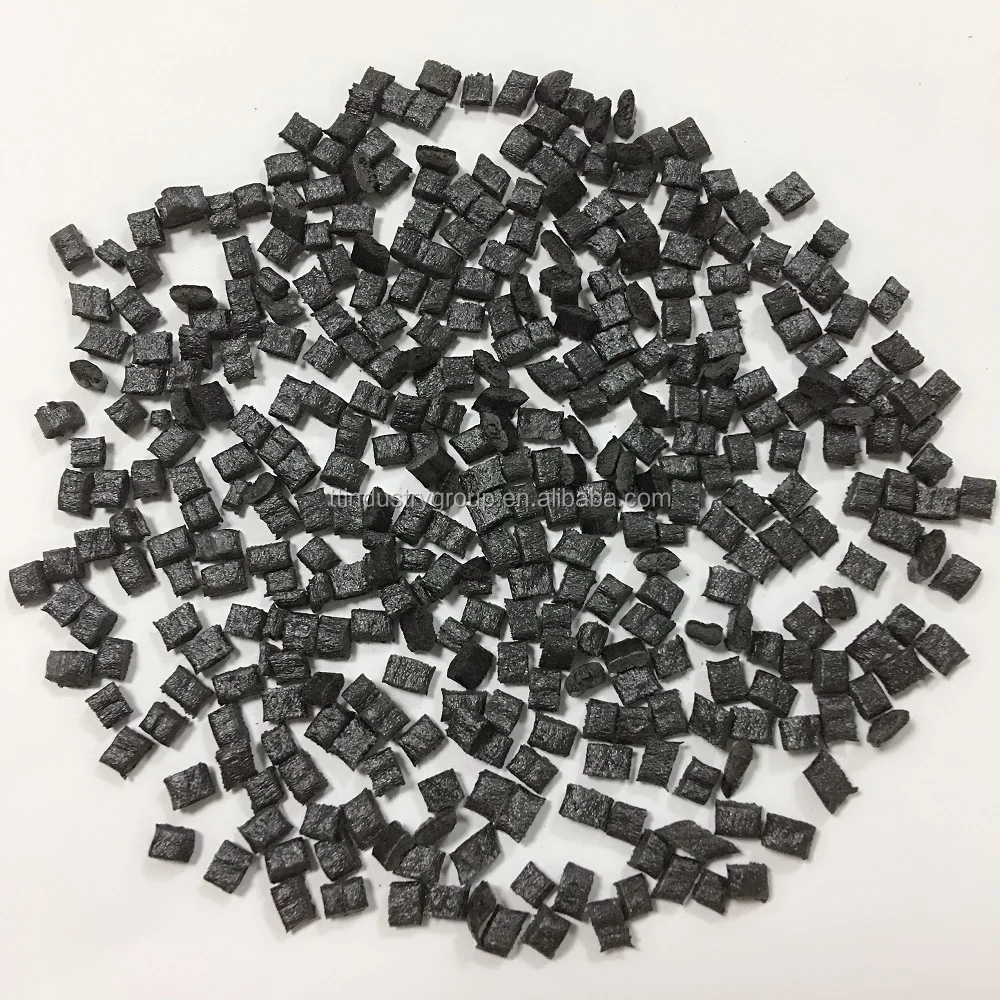

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 3

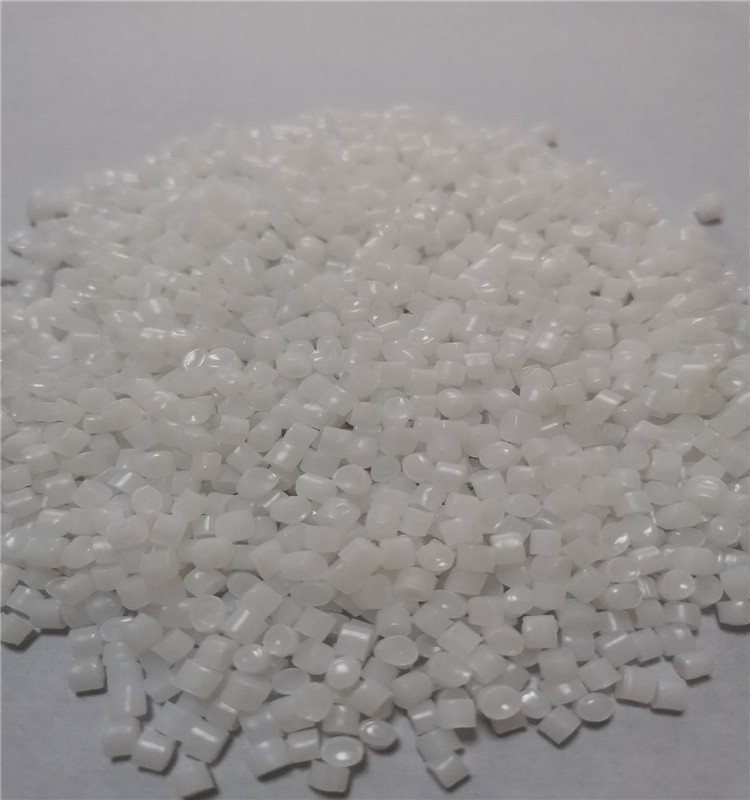

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 4

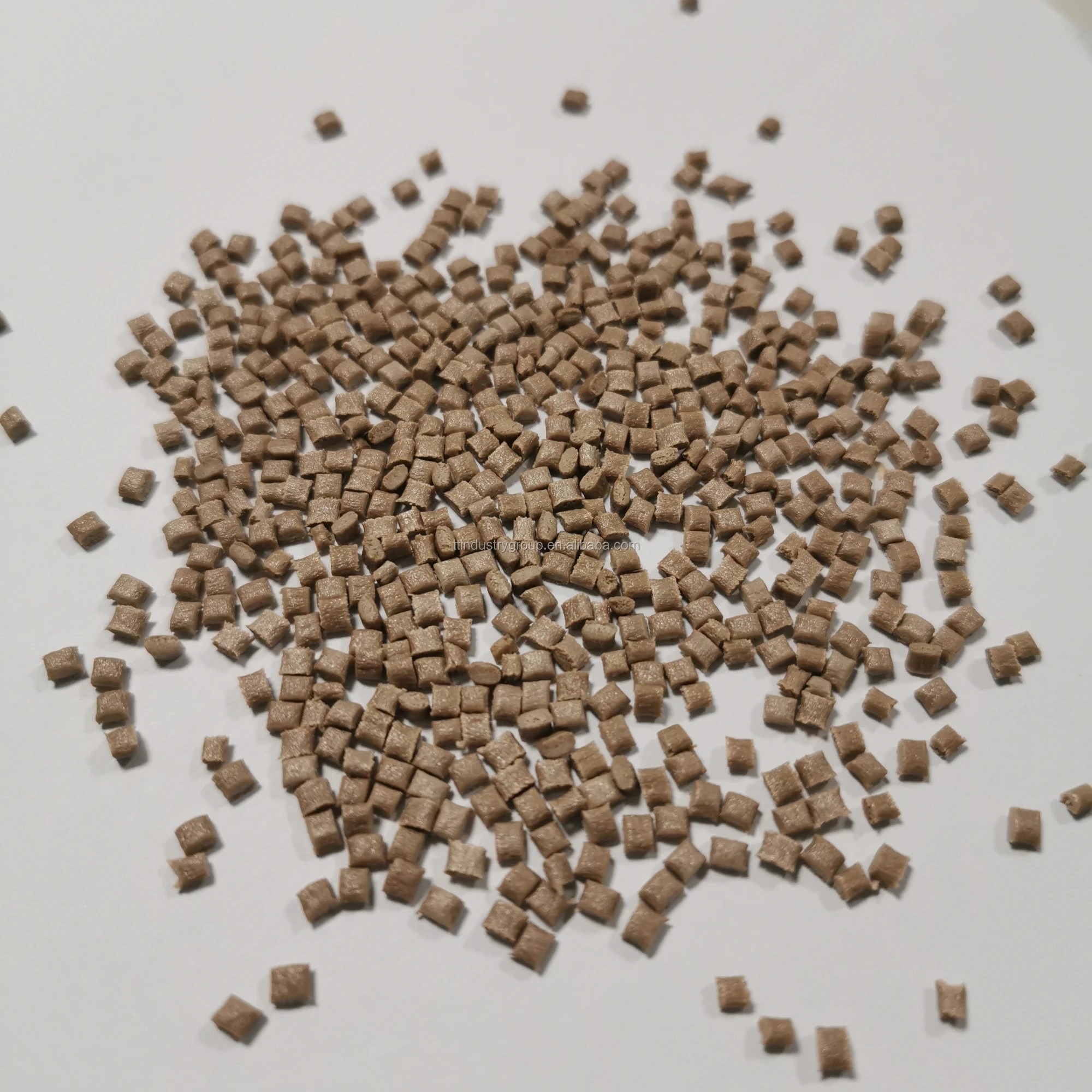

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 5
Properties
Standard
Condition
Unit
Value
Tensile Strength
ASTM D638
50mm/min
Mpa
155
Elongation at Break
ASTM D638
50mm/min
%
1
Flexural Strength
ASTM D790
3mm/min
Mpa
210
Flexural Modulus
ASTM D790
3mm/min
Mpa
11000
Izod Impact, Notched
ASTM D256
Notched
J/m
110
Application
Anto Parts,Electrical Parts,Industry Parts

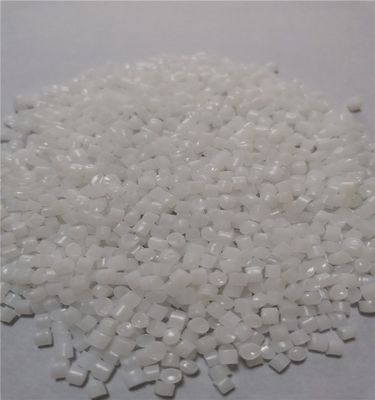

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 6High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 7
High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 8

High Heat Resistant Flame Retarded PPS+40%GF Plastic Granule Plastic Master Batch 9
